Forstner MANUAL DECOILER
Forstner’s manual decoiler handles very large coils of up to 5 tons and 1100 mm in diameter. Strong and reliable, it features an expandable central mandrel and adjustable brake, adaptable for two coil widths.
MANUAL DECOILER
Manual decoiler with a capacity of up to five tons. Decoiler for very large coils. With a capacity for coils up to 5 tons and an outer diameter of up to 1100 mm, this is a strong assistant. FORSTNER manual decoiler is equipped with an expandable central mandrel and an adjustable brake. Available for two different coil widths.
Smart Advantages
- Manual decoiler with expandable central mandrel
- Manually adjustable brake
Key advantages

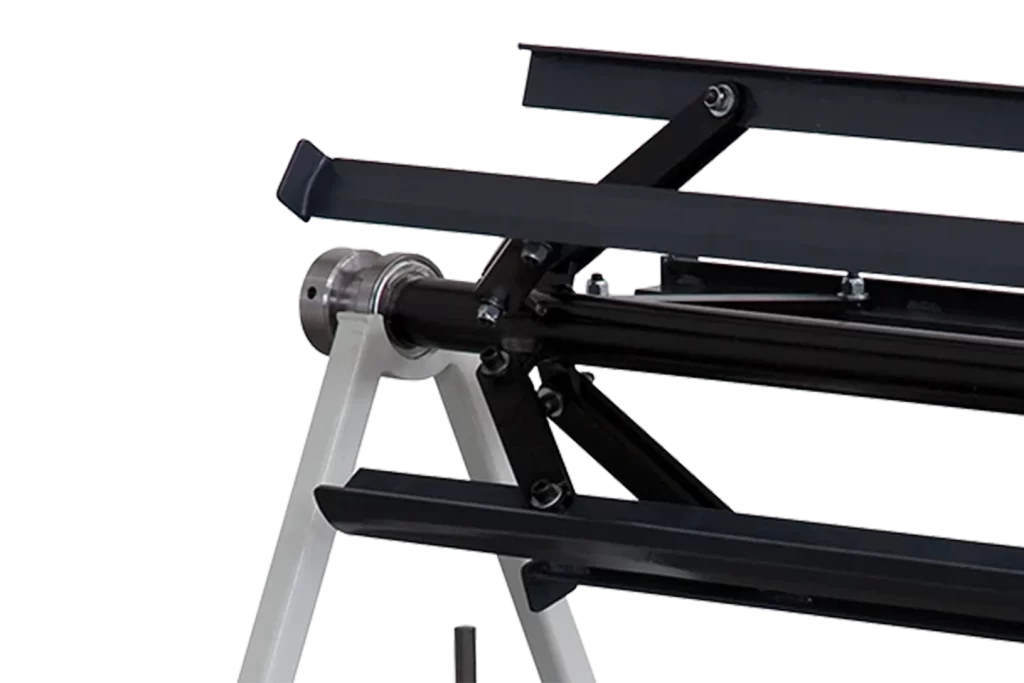

Expandable center mandrel
Adjustable brake
Large capacity
Capacity
Robust motor-driven decoiler for high-speed production.
Material Widht
1250 – 1500 mm
Coil Widht
1270 – 1550 mm
Coil Capacity
5000 kg
Expandable center mandrel
Adjustable brake
Discover the smart planning tool for sheet metal profiles
Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.
Technical specifications
| Model | MANUAL DC 5-12 | MANUAL DC 5-15 |
|---|---|---|
| Coil weight | 5000 kg | 5000 kg |
| Width | 1270 mm | 1550 mm |
| Inner diameter | 360 – 630 mm | 360 – 630 mm |
| Outer diameter, max | 1100 mm | 1100 mm |
| Expandable mandrel | Manual | Manual |
| Brake | Adjustable | Adjustable |
