Forstner MANUAL DECOILER TOWER

The manual decoiler tower doubles the capacity in the same space, allowing storage of two coils vertically for increased efficiency. Each unit handles up to 2000 kg and 1250 mm wide coils.

hand wheel for manual decoiler for easier handling on white background
coil tower with two decoilers on white background

Forstner MANUAL DECOILER TOWER

Software
Support
Technical specification
Request a quote

Forstner MANUAL DECOILER TOWER

Manual decoiler tower is the solution that most people like. On the same surface as you have one coil, you can now have two. Build on the height and become more efficient. Each decoiler can handle 2000 kg and a coil width of 1250 mm. Easily loaded with a crane or forklift, minimizing the risk of damage to the material and ensures rapid coil changes.

Smart Advantages

  • Manual decoilers with single frame and expandable mandrel
  • Manually adjustable brake
  • Open design for easy and secure loading

Key advantages

Decoiler with single frame and expandable mandrel

Manually adjustable brake

Open design for easy and safe loading

Capacity

Robust motor-driven decoiler for high-speed production.

Coil Widht

1250 mm

Coil Weight

2 x 2000 kg

Coil Diameter Outer

850 mm

hand wheel for manual decoiler for easier handling on white background

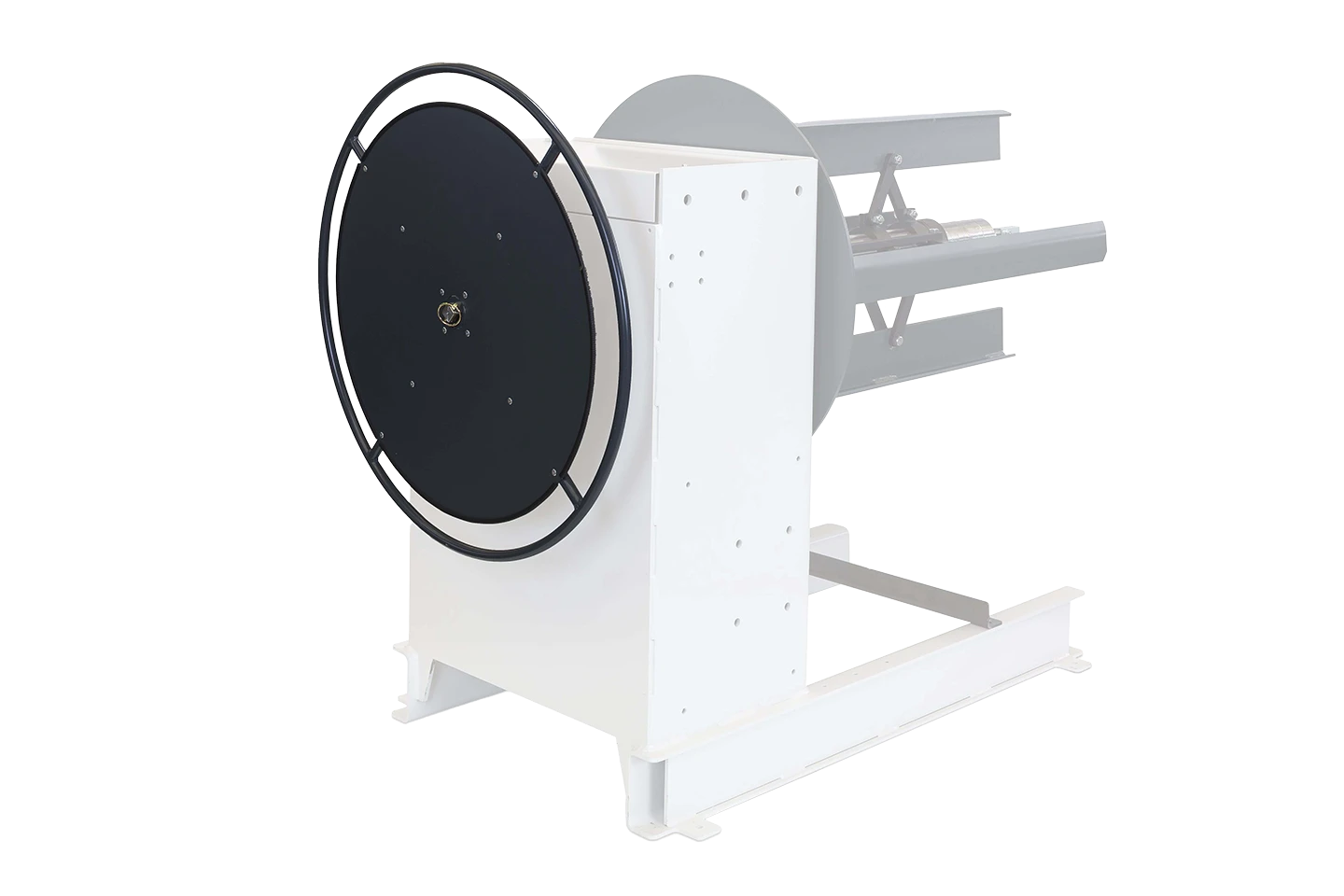

OPTION

Handwheel

A perfect complement to our 2-ton decoilers is the larger handwheel mounted on the back of the decoiler to simplify rewinding of the sheet metal. It is easy to move between different decoilers.

press arm for forstner decoiler tower

OPTION

Press Arm

A press arm is essential when handling heavy materials up to 2 tons. By securing the material in place, it improves the workflow and makes it easier to handle and replace coils.
It is also available as a retrofit for existing decoilers.

Material thickness (max):

  • 1.5 Steel
  • 2.0 Aluminium,
  • 1.2mm Stainless

Max coil outer diameter: Ø 850mm

Handwheel

A perfect complement to our 2-ton decoilers is the larger handwheel mounted on the back of the decoiler to simplify rewinding of the sheet metal. It is easy to move between different decoilers.

hand wheel for manual decoiler for easier handling on white background
nuevolution for smart production and ordering of sheet metal profiles

Discover the smart planning tool for sheet metal profiles

Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.

Discover nuEVOLUTION
coil tower with two decoilers on white background

Technical specifications

Download leaflet
ModelDO 2 Decoiler tower
Coil weight2 x 2000 kg
Coil with1250 mm
Inner diameter360 – 520 mm
Outer diameter850 mm

Support

We are always available for technical support and are happy to perform preventive and protective maintenance on your machines.

Contact Us
cidan forstner thalmann service and support

Get help choosing the right machine

Talk to one of our specialists and get answers to all your questions. Call +46 511 245 20 or contact us via email:

Contact us now

Trade in your old machine

We buy your old machine, regardless of brand and age, when you invest in a new one from us. Take the opportunity to invest in a more efficient future by upgrading to a new, smart, and fast machine. The fact that the new machines are also more environmentally friendly is an added bonus.

Contact Us

Spare parts

Do you need spare parts and accessories for your CIDAN, Forstner, or Thalmann machine? Take the opportunity to place your order to ensure your machines are always in top condition. Contact us via email, and we’ll take care of it for you.

Contact Us

FAQ

FAQ

The FORSTNER Manual Decoiler Tower is a space-saving decoiler solution for companies that want to handle multiple coils efficiently in sheet metal production. It is used together with Cut to Length lines, straightening and cutting lines, or other sheet metal processing machines where material is fed from coil. By storing two manual decoilers vertically, the shop can double its coil capacity in the same floor space and create a more organized material flow.

The FORSTNER Manual Decoiler Tower is designed for a coil width of 49″ and has a capacity of 2 x 4,400 lbs. This means that two coils can be placed in the same tower solution, making it possible to handle multiple materials or colors while using less floor space. It is especially useful in production environments where quick coil changes and efficient coil handling are important.

The main difference between a manual decoiler tower and a standard decoiler is that the tower uses vertical space to create a more space-efficient solution. A standard manual decoiler is normally placed on the floor as a separate unit, while the Manual Decoiler Tower makes it possible to place two decoilers vertically. This improves floor space utilization and can simplify material handling when multiple coils are used in production.

The FORSTNER Manual Decoiler Tower is useful together with Cut to Length lines because it makes coil material more accessible and supports a more efficient workflow from coil to finished sheet metal blank. When multiple coils can be positioned close to the Cut to Length line, it becomes easier to change material, reduce unnecessary movement, and keep production organized. For companies processing sheet metal from coil, a decoiler tower can support better material flow, less downtime, and more efficient coil handling.

The main advantages of the FORSTNER Manual Decoiler Tower are space savings, stable coil handling, and easier material flow. By building vertically, companies can handle two coils in a compact footprint, freeing up floor space and improving organization around production. The tower includes manual decoilers with a single frame and expanding mandrel, a manually adjustable brake, and an open design for easy and safe loading.
