Forstner DECOILER 2000 kg

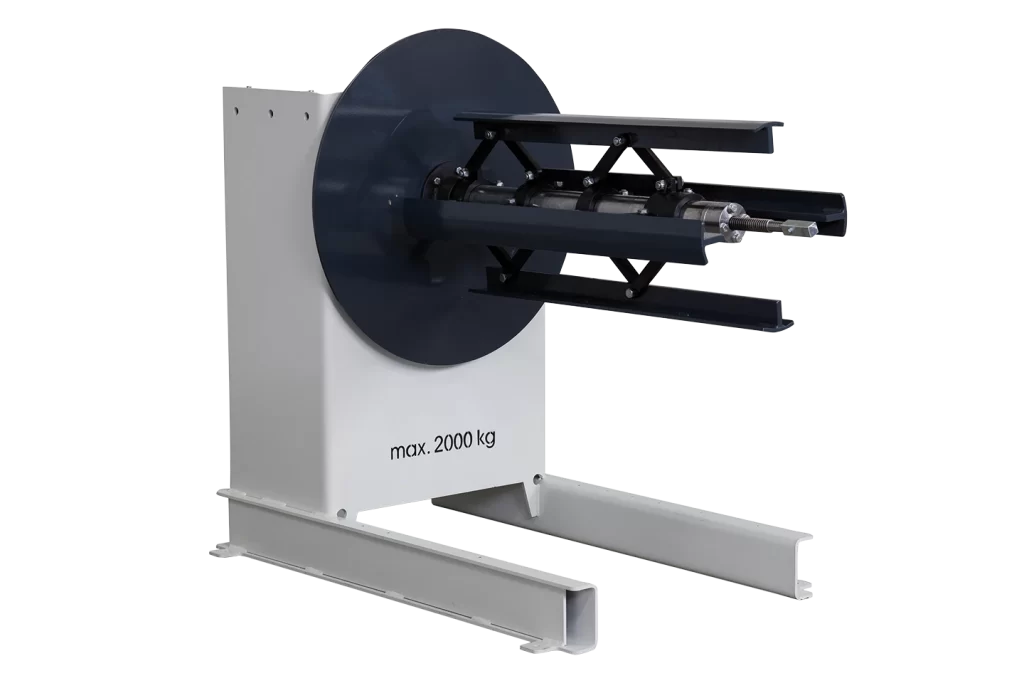

Forstner decoiler 2000 kg with single frame and expandable mandrel. Easy to load. Available as both motorized and manual.
Forstner DECOILER 2000 kg
The 2-ton decoiler is available in both manual and motorized versions. The manual version is equipped with an adjustable brake and can also be built vertically to use space more efficiently. See more under Decoiler Tower.
The motorized decoiler is floor-mounted and equipped with its own control and loop control. It can be used as a stand-alone unit or easily integrated with our Cut to Length lines equipped with the S1 control system. If you choose a Multicoil line, motorized decoilers can also be used vertically and fully integrated with the F3 control system.
Smart Advantages
- Decoiler with single frame and expandable mandrel
- Choose between motorized or manual
- Manually adjustable brake
- Open design for easy and safe loading
Key Advantages
Decoiler with single frame and expandable mandrel
Manually adjustable brake
Open design for easy and safe loading
Capacity
Robust motor-driven decoiler for high-speed production.
Coil Width
1250 mm
Coil Weight
2000 kg
Coil Diameter
850 mm
OPTION
Handwheel
A perfect complement to our 2-ton decoilers is the larger handwheel mounted on the back of the decoiler to simplify rewinding of the sheet metal. It is easy to move between different decoilers.
OPTION
Larger Inner Diameter
As option, our 2-ton decoilers can be delivered for inner diameter 470-620 mm.
OPTION
Press Arm
A press arm is essential when handling heavy materials up to 2 tons. By securing the material in place, it improves the workflow and makes it easier to handle and replace coils.
It is also available as a retrofit for existing decoilers.
Material Thickness (max):
- 1.5 Steel
- 2.0 Aluminium,
- 1.2mm Stainless
Max coil outer diameter: Ø 850mm
Handwheel
A perfect complement to our 2-ton decoilers is the larger handwheel mounted on the back of the decoiler to simplify rewinding of the sheet metal. It is easy to move between different decoilers.
Discover the Smart Planning Tool for Sheet Metal Profiles
Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.
Technical Specifications
| Model | DO 2-12 |
|---|---|
| Coil weight | 2000 kg |
| Coil width | 1250 mm |
| Inner diameter | 360 – 520 mm |
| Outer diameter | 850 mm |
