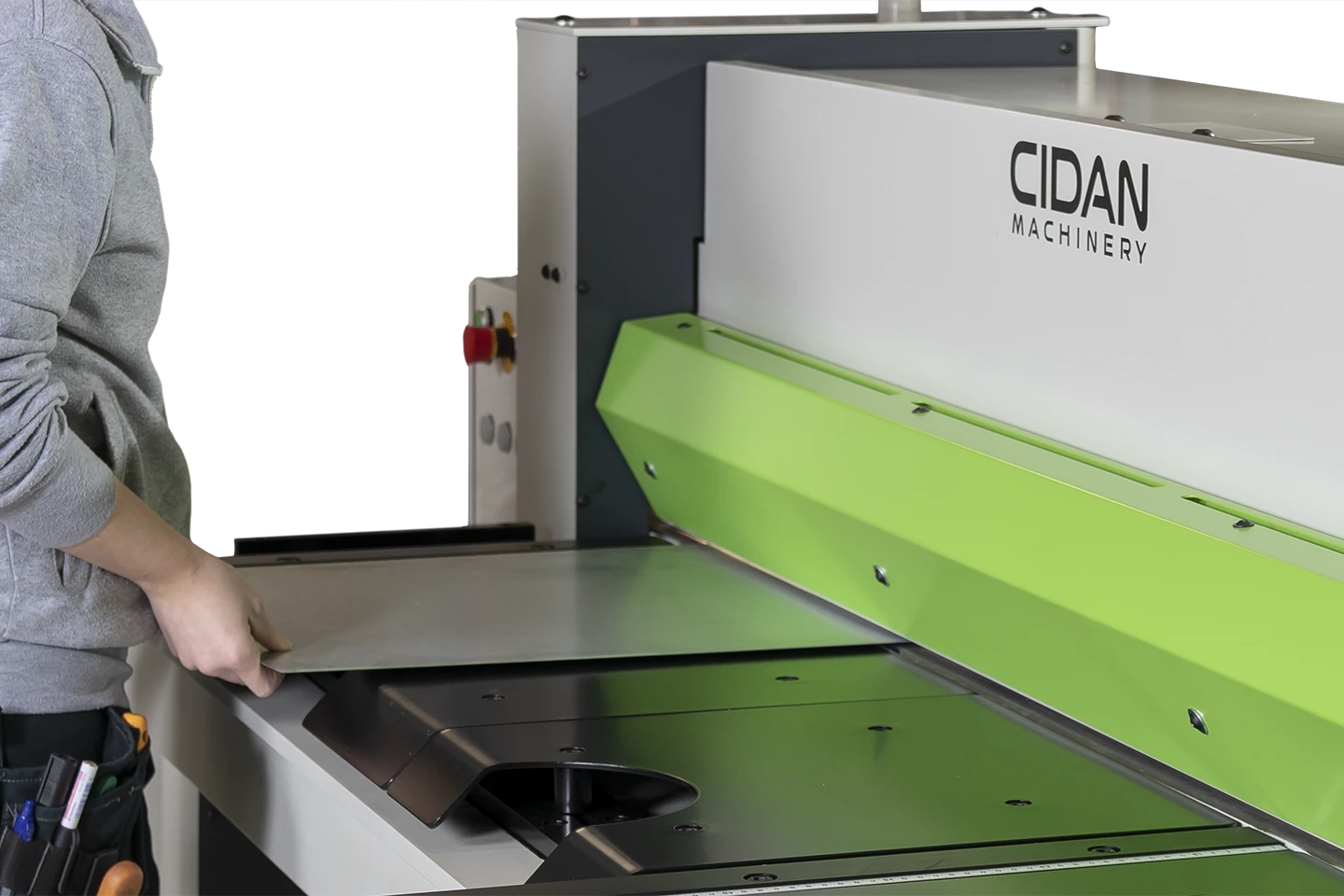

CIDAN RAPIDO guillotine shear
The CIDAN RAPIDO guillotine shear is a robustly built machine that cuts all sheet thicknesses within its working range without any adjustments. This results in a durable and sturdy guillotine shear that also enhances your efficiency. It is environmentally friendly, consumes little energy, and operates quietly. The RAPIDO guillotine shear comes well-equipped even in its standard configuration, making it a highly cost-effective machine.
Key advantages
Strong and user friendly with a wide working range without blade gap adjustment
Fast with up to 35 cuts per minute
Well-equipped as standard – motorized back gauge, pneumatic sheet support, CutLink NC-control
Capacity
The CIDAN RAPIDO guillotine shear is a robustly built machine that cuts all sheet thicknesses within its working range without any adjustments.
Working length
53″ – 161″
(1350 mm – 4100 mm)
Cuts per minute
35
Steel thickness (400 N/mm2)
10 ga – 16 ga
(3.5 – 1.5 mm)
CutLink control system
RAPIDO comes standard with a CutLink control system that controls following:
- 29.5″ (750 mm) or 39.3″ (1000 mm) motorized back gauge, in single or program mode.
- Pneumatic sheet support
- Parts counter
- Cutting mode – single cut or continuous cut
- Pneumatic controlled Holddownbeam (Optional)
29.5″ (750 mm) or 39.3″ (1000 mm) motorized back gauge
Fast and accurate NC- controlled motorized back gauge with T-belt and ball screw spindles.
Sheet support with front delivery
The pneumatic sheet support is supporting the material during the cutting cycle. This ensures a maximum back gauge precision and prevent dog ears at the cut pieces. After the cut, the sheet support delivers the sheet to the front of the shear.
This is a great advantage when cutting large sheets or sensitive materials like copper and zinc.
Holddownbeam with LED cutting line light
The hold down beam positioned just 1.2″ (32 mm) from the cutting line, minimizing waste.
The beam also serves as finger protection, preventing fingers from reaching the knives.
The holddownbeam has an opening at the top, providing a clear view of the LED illuminated lower shear blades. This is very helpful when cutting along marked lines.
Minimizes waste
Spring-loaded sheet holder positioned just 1.2″ (32 mm) from the cutting line, minimizing waste. The sheet holder also serves as finger protection, preventing fingers from reaching the shear.
RAPIDO table
RAPIDO has milled grooves in the table every tenth millimeter and fixed angle stops with millimeter scales on both sides.
LED-illuminated cutting line
The sheet holder has laser-cut sight windows at the top, providing a clear view of the illuminated section at the shear blades. This is very helpful when cutting along scribed lines.
OPTION
Extendable table extension
OPTION
Moveable material wagon
OPTION
Sheet support with rear delivery
OPTION
Pneumatic controlled holddownbeam
Squaring arms table
RAPIDO can be equipped with squaring arms both with or without T-groove and tilting stop.
Discover the smart planning tool for sheet metal profiles
Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.
Technical specifications
| Model | RAPIDO 13 | RAPIDO 26 | RAPIDO 32 | RAPIDO 41 |
|---|---|---|---|---|
| Working length | 53″ (1350 mm) | 100″ (2600 mm) | 126″ (3200 mm) | 161″ (4100 mm) |
| Speed cuts/min | 35 | 35 | 35 | 35 |
| Weight | 3100 lbs (1400 kg) | 4300 lbs (1950 kg) | 4630 lbs (2100 mm) | 5511 lbs (2500 kg) |
| Steel1 | 10 ga (3.5 mm) | 13 ga (2.5 mm) | 13 ga (2.5 mm) | 16 ga (1.5 mm) |
| Stainless steel2 | 14 ga (2.0 mm) | 16 ga (1.5 mm) | 16 ga (1.5 mm) | 24 ga (0.6 mm) |
| Aluminum3 | 0.196″ (5,0 mm) | 0.157″ (4.0 mm) | 0.157″ (4.0 mm) | 0.08″ (2.2 mm) |
Discover Our Smart Solutions in Action
Explore how CIDAN’s machines perform in production. Each video highlights key features designed to make your sheet metal processing faster, smarter, and more efficient. Get inspired, see the difference – and imagine what’s possible for your business.
CIDAN RAPIDO 30 guillotine shear – delivery to rear
RAPIDO presentation
